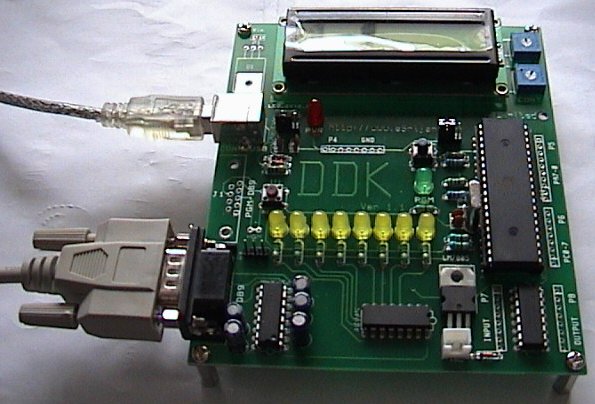

| E0201: Electronics Device Development Kit |
|---|
Specifications:
- AVR uC based Development Board (clocked @ 16MHz)
- With minimum of 16KiB Flash and 512B EEPROM
- Expandability till 32KiB Flash and 1KiB EEPROM
- USB Powered - No additional power adaptor required
- Built-in USB Device circuitry support
- 2 line x 16 character liquid crystal display
- Upto 16 independent Digital I/O Controls
- Upto 8 independent ADC Inputs
- Upto 3 independent PWM Outputs (optional)
- Stepper Motor Control
- Sensor-based automation support
- Programming through std HID i/f using pre-programmed bootloader
- DB9 Male to Female & USB Type A to Type B cables included
- Supported Software: BootloadHID, vusb, Custom apps
Libraries & Demo Applications: Browse Or,
git clone https://github.com/esrijan/ddk-software.git; cd ddk-software/Examples
Open Hardware: v1.1 (git clone -b "v1.1" https://github.com/esrijan/ddk-hardware.git)
|
Schematic: DDK-Schematic.pdf
Gerbers: DDK-Gerbers.tgz
Design PDFs: DDK-PDFs.tgz
Bill Of Material: DDK-BOM.lst
For order: Check out newer version
|
|
|---|
