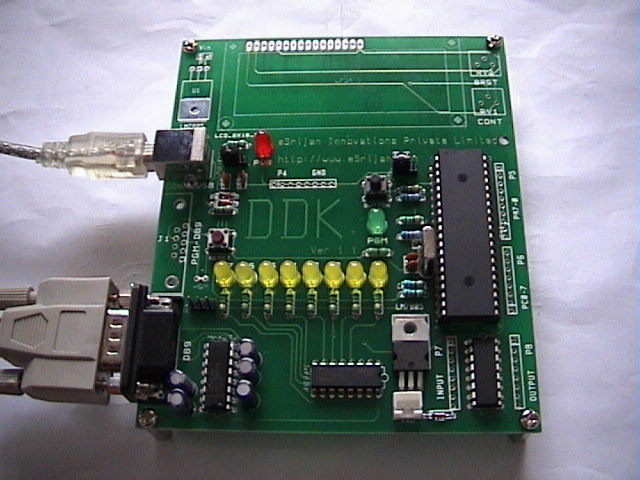

| E0101: Linux Device Driver Kit |
|---|
Specifications:
- AVR uC based USB Device (clocked @ 16MHz)
- With minimum of 16KiB Flash and 512B EEPROM
- USB Powered - No additional power adaptor required
- 8-LED Array for Character Device Driver programming through DB9 i/f
- EEPROM accessibility as Character Device
- Contains USB2Serial circuitry for USB Device Driver programming
- Enabled with Block Device Driver programming over EEPROM/Flash
- 2 line x 16 character driver controllable display provision
- Self-upgradable for future new functionalities
- DB9 Male to Female & USB Type A to Type B cables included
- All relevant documentation, datasheets, driver source codes provided
Linux Drivers: Download v1.7
Linux Kernel Support: Compatible with Linux kernel 3.7.x
Open Firmware: v1.3 (git clone -b "fw/v1.3" https://github.com/esrijan/ddk-software.git)
Open Hardware: v1.1 (git clone -b "v1.1" https://github.com/esrijan/ddk-hardware.git)
|
User Manual: LDDK-UserManual.pdf
Schematic: DDK-Schematic.pdf
Gerbers: DDK-Gerbers.tgz
Bill Of Material: DDK-BOM.lst
For order: Check out newer version
|
|
|---|
