| eSrijan Products |
|---|
Educational Products
|

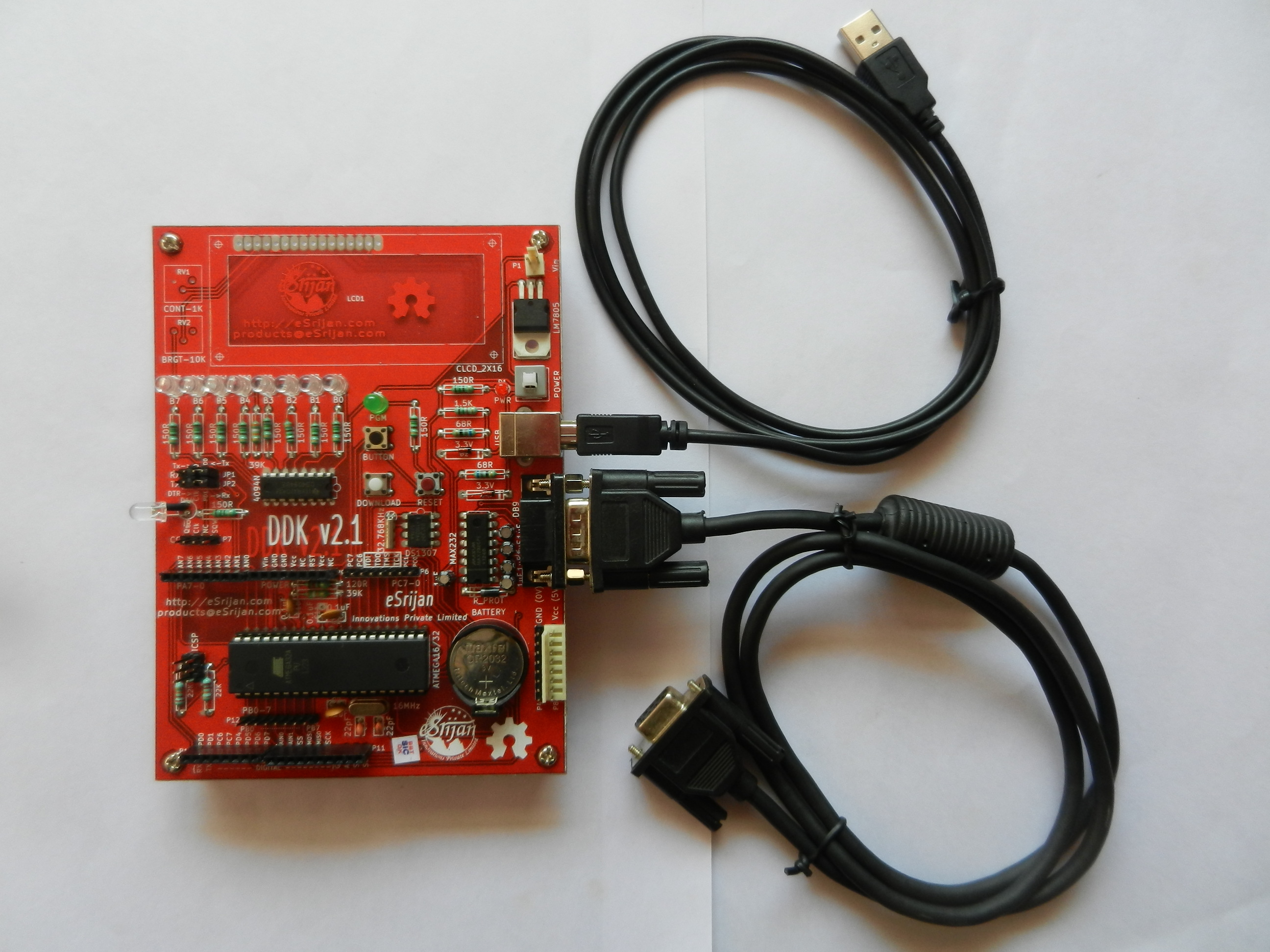

→ E0102: Linux Device Driver Kit (based on DDK v2.1)
- AVR uC based USB Device (clocked @ 16MHz)
- With 32KiB Flash and 1024B EEPROM
- USB Powered - No additional power adaptor required
- 8-LED Array for Character Device Driver programming through DB9/USB i/f
- EEPROM accessibility as Character Device
- Contains USB2Serial circuitry for USB Device Driver programming
- Enabled with Block Device Driver programming over EEPROM/Flash
- 2 line x 16 character driver controllable display provision
- Real Time Clock accessibility provision
- Self-upgradable for future new functionalities
- DB9 Male to Female & USB Type A to Type B cables included
- All relevant documentation, datasheets, driver source codes provided
|
|

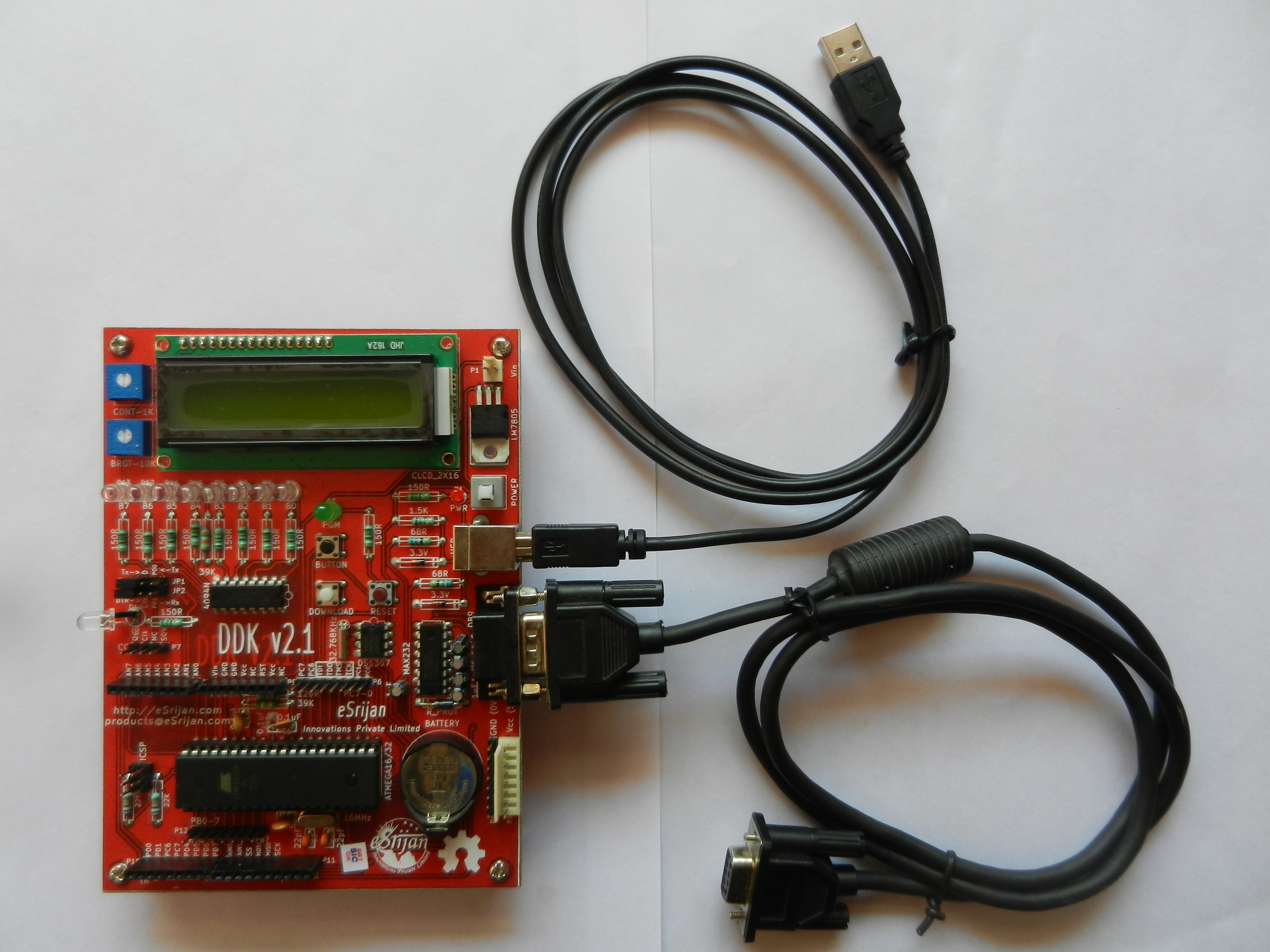

→ E0202: Electronics Device Development Kit (based on DDK v2.1)
- AVR uC based Development Board (clocked @ 16MHz)
- With 32KiB Flash and 1024B EEPROM
- USB Powered - No additional power adaptor required
- Built-in USB Device circuitry support
- On-board Real Time Clock
- 8-LED Array control through uC as well as DB9 i/f
- 2 line x 16 character liquid crystal display
- 2 push buttons for menu controls
- Featured w/ infra red transmission LED
- Minimum of 16 independent Digital I/O Controls
- Upto 8 independent ADC Inputs
- Upto 4 independent PWM/Timer Outputs
- Vcc & GND headers for direct extensibility
- Arduino shield extension headers included
- Sensor-based automation support
- Custom programming as a uC-based device through standard HID i/f
- Direct ICSP programming interface
- DB9 Male to Female & USB Type A to Type B cables included
- Software Support: bootloadHID, vusb, custom applications
|
|
Archives of previous products
|
→ E0101: Linux Device Driver Kit (based on DDK v1.1)
- AVR uC based USB Device (clocked @ 16MHz)
- With minimum of 16KiB Flash and 512B EEPROM
- USB Powered - No additional power adaptor required
- 8-LED Array for Character Device Driver programming through DB9 i/f
- EEPROM accessibility as Character Device
- Contains USB2Serial circuitry for USB Device Driver programming
- Enabled with Block Device Driver programming over EEPROM/Flash
- 2 line x 16 character driver controllable display provision
- Self-upgradable for future new functionalities
- DB9 Male to Female & USB Type A to Type B cables included
- All relevant documentation, datasheets, driver source codes provided
|
|

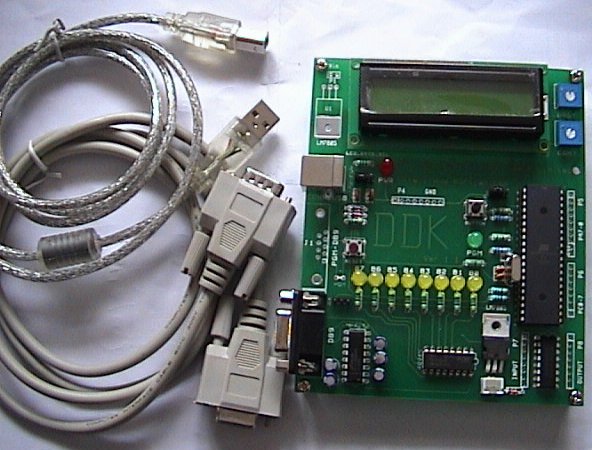

→ E0201: Electronics Device Development Kit (based on DDK v1.1)
- AVR uC based Development Board (clocked @ 16MHz)
- With minimum of 16KiB Flash and 512B EEPROM
- Expandibility till 32KiB Flash and 1KiB EEPROM
- USB Powered - No additional power adaptor required
- Built-in USB Device circuitry support
- 2 line x 16 character liquid crystal display
- Upto 16 independent Digital I/O Controls
- Upto 8 independent ADC Inputs
- Upto 3 independent PWM Outputs (optional)
- Stepper Motor Control
- Sensor-based automation support
- Custom programming as a uC-based device through standard HID i/f
- DB9 Male to Female & USB Type A to Type B cables included
- Software Support: bootloadHID, vusb, custom applications
|
|
|
|---|
